KiCad Board Template For Raspberry Pi Zero (W) uHAT

Easy starting point for Raspberry Pi Zero (W) uHAT^[1] extension board. GPIO 40 Pin connector is of through hole type, board size is 65x30mm. Pi Zero or Zero W boards do not have PoE header, other components can be placed in that region. ID EEPROM is not added as its footprint package and I2C pull-up resistors size could be different based on your project.

Get Design Files

KiCad design files and instructions are available on GitHub public repository:
https://github.com/rkprojects/kicad-rpiz-uhat-template↗

Screen Shots

PCB

Schematic

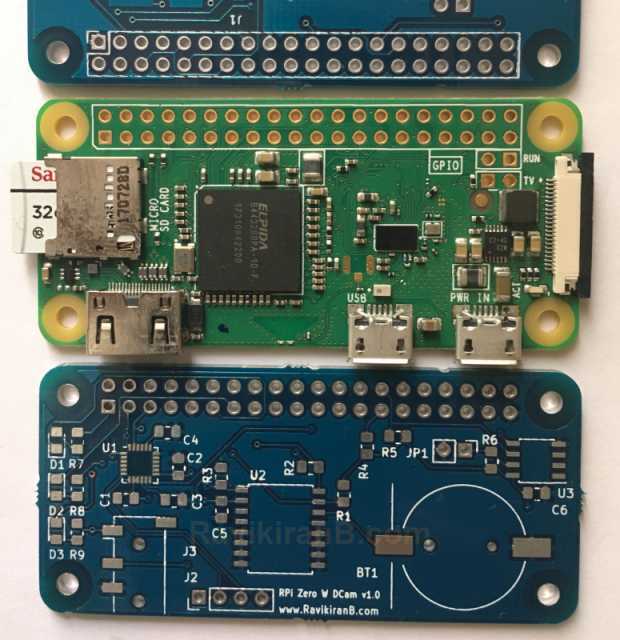

Project using board template

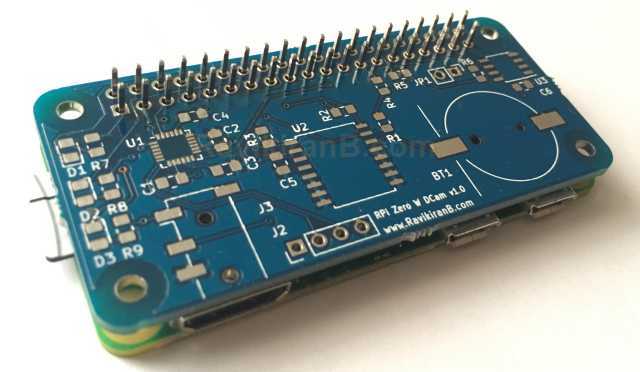

Project using board template
